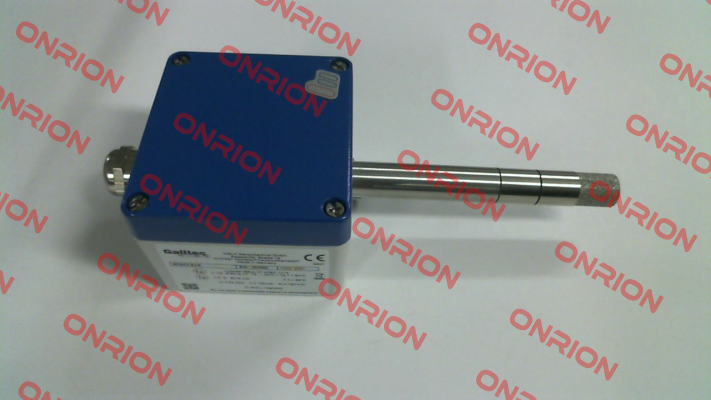

KGC3.Ex/8  - Galltec Mela United States  Sales

BRAND Galltec Mela
Product KGC3.Ex/8
Description Humidity /temperature sensor Ex version
Internal code ONR3409153
Weight 0.47
Custom code 90258040
Technical specification II 1/2 G Ex ia IIC T4 II 2 D Ex tb IIIC T95 ° C -40 ° C Ta + 80 ° C Approved for use in Explosive areas according to EC type examination certificate IBExU 07 ATEX 1114 Use in Zone 0 only together with Assembly kit ZA40 Please order assembly kit ZA40 separately further assembly instructions and dimension drawings according to data sheet C4.8 Housing transmitter: die-cast aluminum Ex IP66 Sensor part: stainless steel 1.4301, length: 111mm Wall mounting Output 1: relative humidity Output range 1: 0 ... 100% r.h. Output signal 1: 4 ... 20 mA Output 2: temperature Output range 2: -20 ... 80 ° C Output signal 2: 4 ... 20 mA Operating voltage: 13 ... 24 V DC intrinsically safe Permissible operating temperature range: -40 ... 80° C Filter: Sintered metal filter made of stainless steel, ZE13 Use according to data sheet Subject to changes EC CONFORMITY: CE95 This device is supplied via the transmitter supply devices listed in data sheet C4.8. Please order separately. The use of another power supply is at the risk of the user.

Please Contact Us to Order to offer competitive prices and delivery time for Galltec Mela - KGC3.Ex/8 Humidity /temperature sensor Ex version number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United States Industrial products Market.

WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

More products of Galltec Mela

CZC3.D/6

(Humidity-Temperature Sensor )

DIK200F101F00000

DIK humidity and temperature sensor room design Plastic housing IP30 Operating temperature: -30 ... 60 ° C Output 1: RH 0 ... 0 ... 100% rh 10 V DC Output 2: Temperature 0 ... 0 ... 100 ° C 10 V DC Power supply: 15 ... 30 V DC or 13 ... 26 V AC For more details see data sheet

DIK200F101F000D0

DIK humidity and temperature sensor Wall mount with display Plastic housing IP30 Operating temperature: -30 ... 60 ° C Output 1: RH 0 ... 0 ... 100% rh 10 V DC Output 2: Temperature 0 ... 0 ... 100 ° C 10 V DC Power supply: 15 ... 30 V DC or 13 ... 26 V AC For more details see data sheet

FE09.R/2

Humidity measuring range 0 ... 100% Temperature resistance -40 ... 110 ° C Basic Capacity 135 ± 10 pF

FE09.R/4

Humidity measuring range 0 ... 100% Temperature resistance -40 ... 110 ° C Basic capacity 115 ± 15 pF

FE09/2

Humidity measuring range 0 ... 100% Temperature resistance -60 ... 200 ° C Basic Capacity 135 ± 10 pF

FE09/4

Feuchtesensorelement

FKC2.H/8-F44

Humidity sensor

FPL3/5

4 ... 20mA 12 ... 24V DC                               0 ... 100% RH

FZC 2.H/8-D29

Humidity probes

KKC3.Ex/8

Humidity/temperature sensor explosion

KPC1.S/6-ME

humidity and temperature probe

KVC3/11

Spezialsensor

P/N: 57643939VC5, Type: KVC3/5

humidity/temperature sensor

PRODUKT NR.59524848

TFK120J Humidity Temperature Sensor with capacitive MELA measuring element room design Output humidity: 0 ... 100% RH 4 ... 20 mA Outlet temperature: 0 ... 50 ° C for 4 ... 20 mA Supply voltage: 15 ... 24 V DC

Z3F+1T

Inspection certificate EN 10204 3.1.B 3 measuring points of rel.Feuchte 1 and the measurement point at room temperature Without request data we take the Standard values ​​at 33%; 58% RH; 90% RH at 21 C

Z3F+3T

Inspection certificate EN 10204 3.1.B 3 measuring points of rel.Feuchte and 3 measuring points temperature Without request data we take the Standard values ​​at 33%; 58% RH; 90% RH at room temperature further measuring points temperature 10 ° C, 20 ° C and 30 ° C

Produkt Nr. KKC3.Ex/8

Feuchte-/Temperatursensor Ex-Ausführung

IAK100F137521CS8

Humidity/temperature sensor

KPC1.S/5-ME

Feuchte-Temperatutsensor

ZA40 / 20.068

fitting kit

KKC3.EX4-5 obsolete, replacement KKC3.Ex/8

temperature/humidity sensor

44014800

FG80J Feuchte-Sensor mit Polyga®-Messelement

42042017 / HG Mini

HG-mini room hygrostat

FRC3/6 (57013900RC/6)

humidity sensor

KZC3/5-C14

Humidity-Temperature Sensor
