BRAND | Settima |
Product | GR20 SMT 16B 8L V |
Description | screw pump |
Internal code | ONR4888889 |
Custom code | 84136070 |

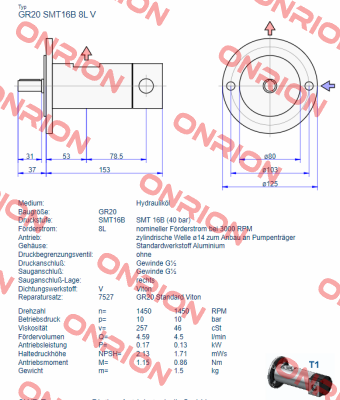

Technical specification | Q/P (1450 rpm; 46 mm²/s; 10 bar) =4.5L/min/0.13 kW, NPSH = 1.71 mWS Q/P (1450 rpm; 257.6 mm²/s; 10 bar) =4.59L/min/0.17 kW, NPSH=2.13 mWS GR20 = frame size SMT 16B = pressure level 40 bar 8L = nominal flow with cylindrical shaft ø14mm for installation with pump carrier and coupling aluminum housing Pressure connection G1/2 Standard suction housing G1/2 V = Viton sealing material |
Please Contact Us to Order to offer competitive prices and delivery time for Settima - GR20 SMT 16B 8L V screw pump number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United States Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
