CTD1X705AXXX - Carlo Gavazzi United States Sales

BRAND	Carlo Gavazzi
Product	CTD1X705AXXX

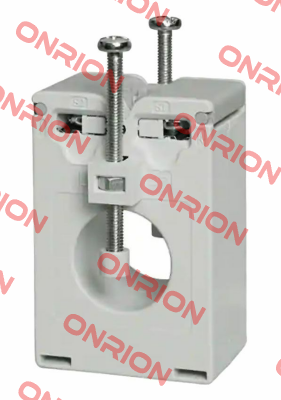

Description	Current Transformer
Internal code	ONR241839
Weight	1

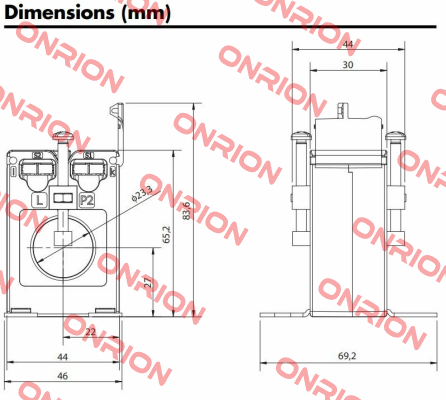

Technical specification	AC Current Transformer (max 23mm φ cable) Type CTD-1X • Cable and bus-bar type current transformer • 0.5 class, currents from 50 to 300 A • Removable DIN-rail mounting holder • Removable panel fixing clips • 2 cable/bus-bar isolated fixing screws • Double screw terminals (up to 8-wire connections) • Sealable terminal block covers Product Description Ordering Key CTD-1X 100 5A XXX Cable/Bus-bar type current transformer with DIN-rail/bus- bar and panel mounting facility. Type Selection Primary current From 50 to 300A (Refer to Range Table) Rated primary currents from 50 A to 300 A. Secondary current 1A 5A Model Primary current Secondary current Option Optional fixing kit: CTD-kit Option XXX:none XTX: tropicalization InputSpecifications Operating frequency48 to 62 Hz Max. system voltage0.72 kV Rated insulation level3 kV/1 min. @ 50 Hz Insulation class E (max 75°C) Short-time current rating Ith Typical 100 In /1 s Idyn 2.5 Ith The short-timethermal current Ith is anyway limited by the cable/bus-bar size Extended current rating 120% Security factor (FS)≤ 5 (Class: 0.5, 1 and 3) General Specifications StandardsAccording to EN60044-1 Housing ABS, self-extinguishing: UL 94 V-0 Mounting DIN-rail bus-bar and panel mounting Standard accessoriesTwo terminal block screws. Two sealable terminal block covers. Two panel mounting fixing clips. One DIN rail adapter. Optional accessories Extended fixing kit CTD-kit: Six cable/bus-bar fixing screws. Six plastic caps for cable/bus-bar fixing screws. Two panel mounting fixing clips. Special features1 A secondary current, Tropicalization Working temperature -25°C to +60°C (-13°F to 140°F) (R.H. < 90% non condensing @ 40°C) Storage temperature-30°C to +70°C (-22°F to 158°F) (R.H. < 90% non condensing @ 40°C) ApprovalsCE, cUrus and CSA ConnectionScrew type Cable cross section area From 1.5 to 6 mm2 Min/Max screws tightening torque relevant to terminal block screws: From 1 to 2 Nm Max screws tightening torque relevant to the cable/bus-bar fixing screws: 0,3 Nm Protection degree IP00 IP20 (with sealable terminal block covers + wire termi nals) Cable diameterMax. 23 mm Bus-bar sizeMax. 20x5 mm WeightFrom 150 to 200 g Output Specifications Rated secondary current5 A or 1 A

Please Contact Us to Order to offer competitive prices and delivery time for Carlo Gavazzi - CTD1X705AXXX Current Transformer number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United States Industrial products Market.

WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
